Brand:

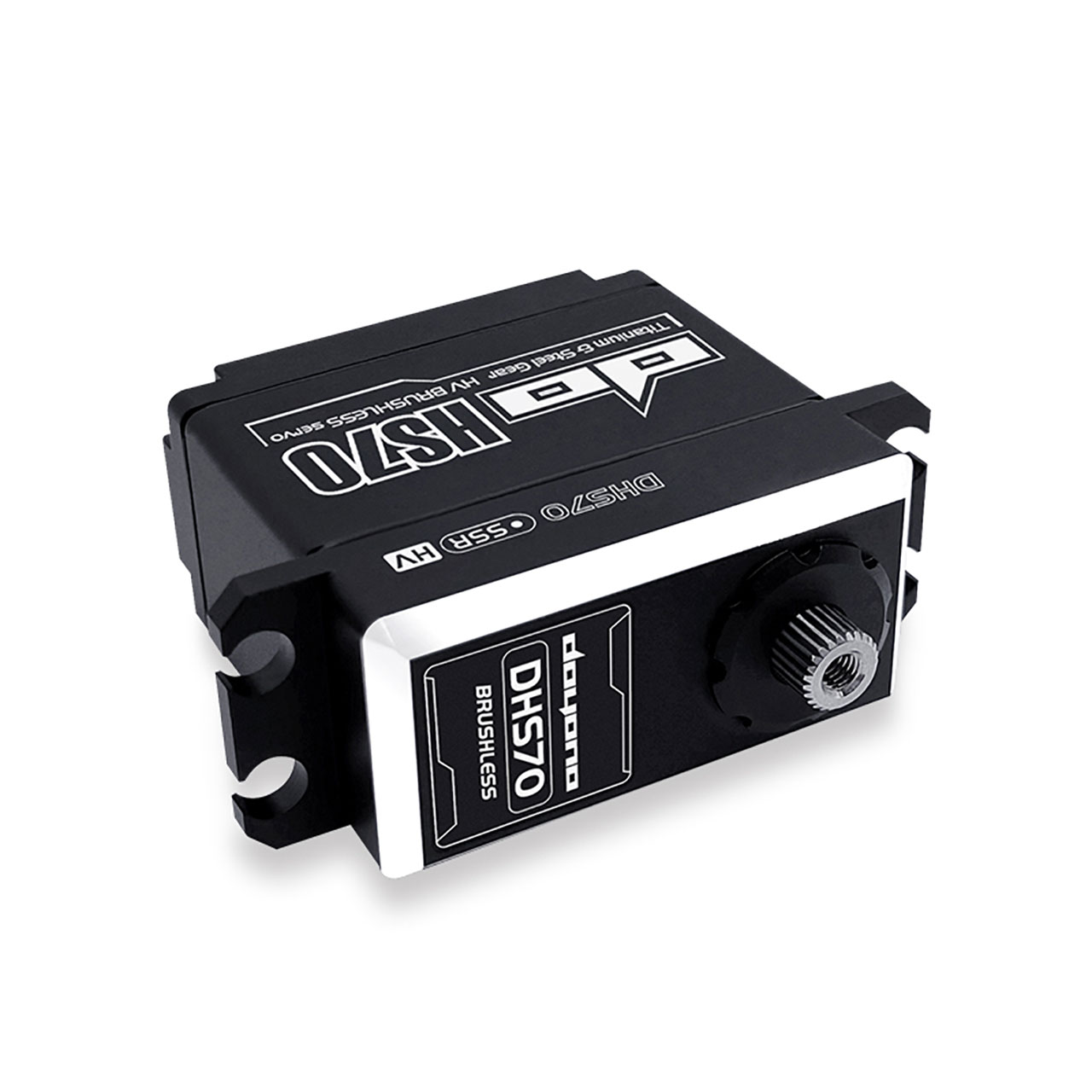

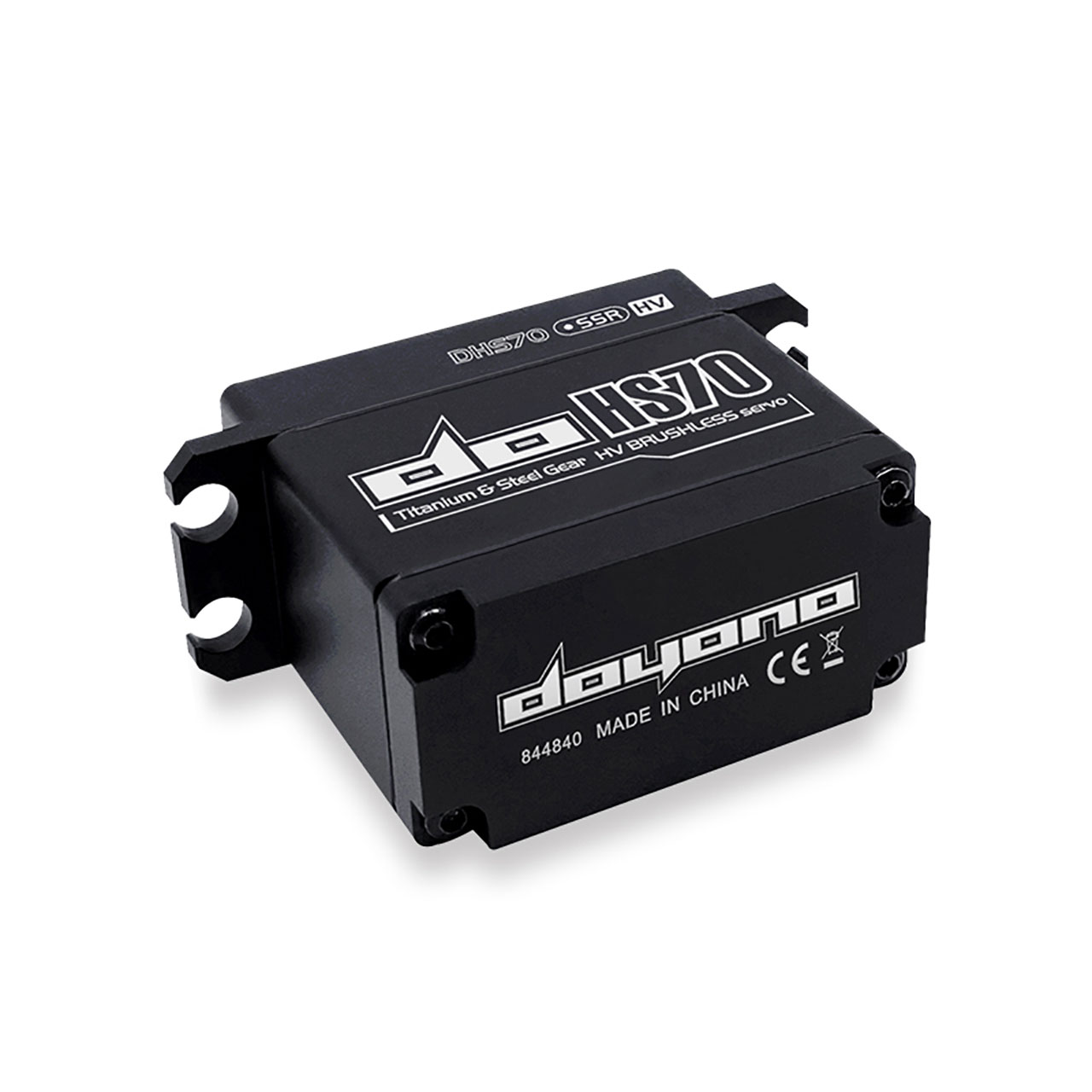

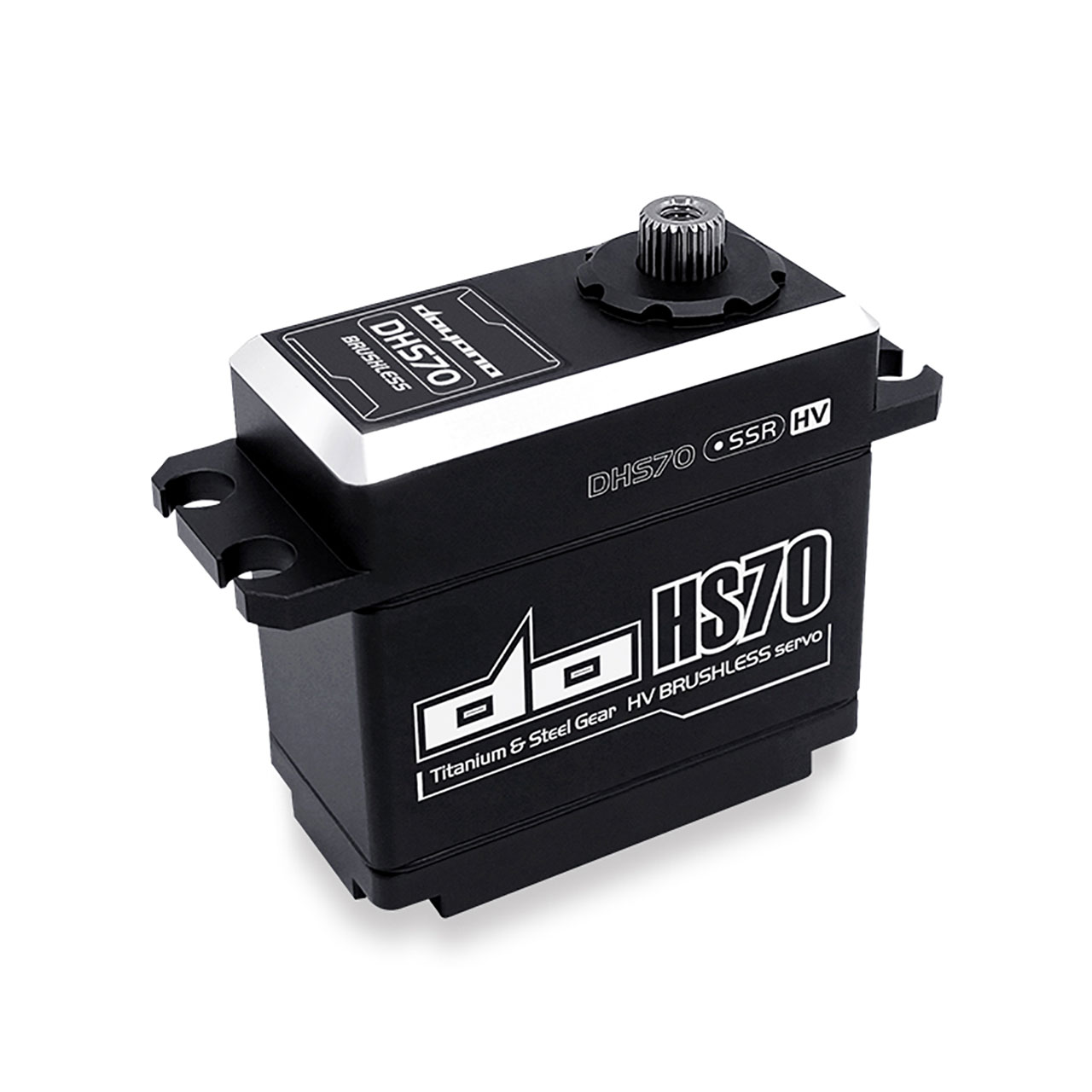

Brushless Servo HV CNC aluminium case 70.0kg/0.125sec @8.4V
High-voltage brushless servo with titanium and steel gears and aluminium case
- Item number
- DHS70
- EAN
- 6959009007012
€68.90incl. VAT, plus shipping
RRP €68.90
Description
The Doyono high-voltage brushless servo delivers up to 70.0 kgcm of torque. It has titanium and steel gears and an aluminium case.
Highlights
- High-voltage servo
- Titanium and steel gears
- Lightweight aluminium housing
- Operating voltage: 6.0–8.4 V
- 2 µs dead band, 1520 µs neutral point
Specifications
| Speed | 0.165 s (6.0 V) · 0.125 s (8.4 V) |
|---|---|
| Torque | 56.0 kgcm (6.0 V) · 70.0 kgcm (8.4 V) |
| Motor | Brushless |
| Gears | Titanium / Steel |
| Bearings | yes, dual |
| Max. Travel | ~120° (at 800: 2200 µs) |
| Quiescent Current | 60 mA @ 6.0 V |
| Rated Current | 0.4 A @ 6.0 V |
|---|---|
| Stall Current | 3.8 A @ 6.0 V |
| Dimensions | 40.7 × 20.5 × 38.9 mm |
| Weight | 84.0 g |
| Spline | 25T |
| Application | 1/5 and 1/8 Off-Road |
| Connection Wire Length | 180 mm |
