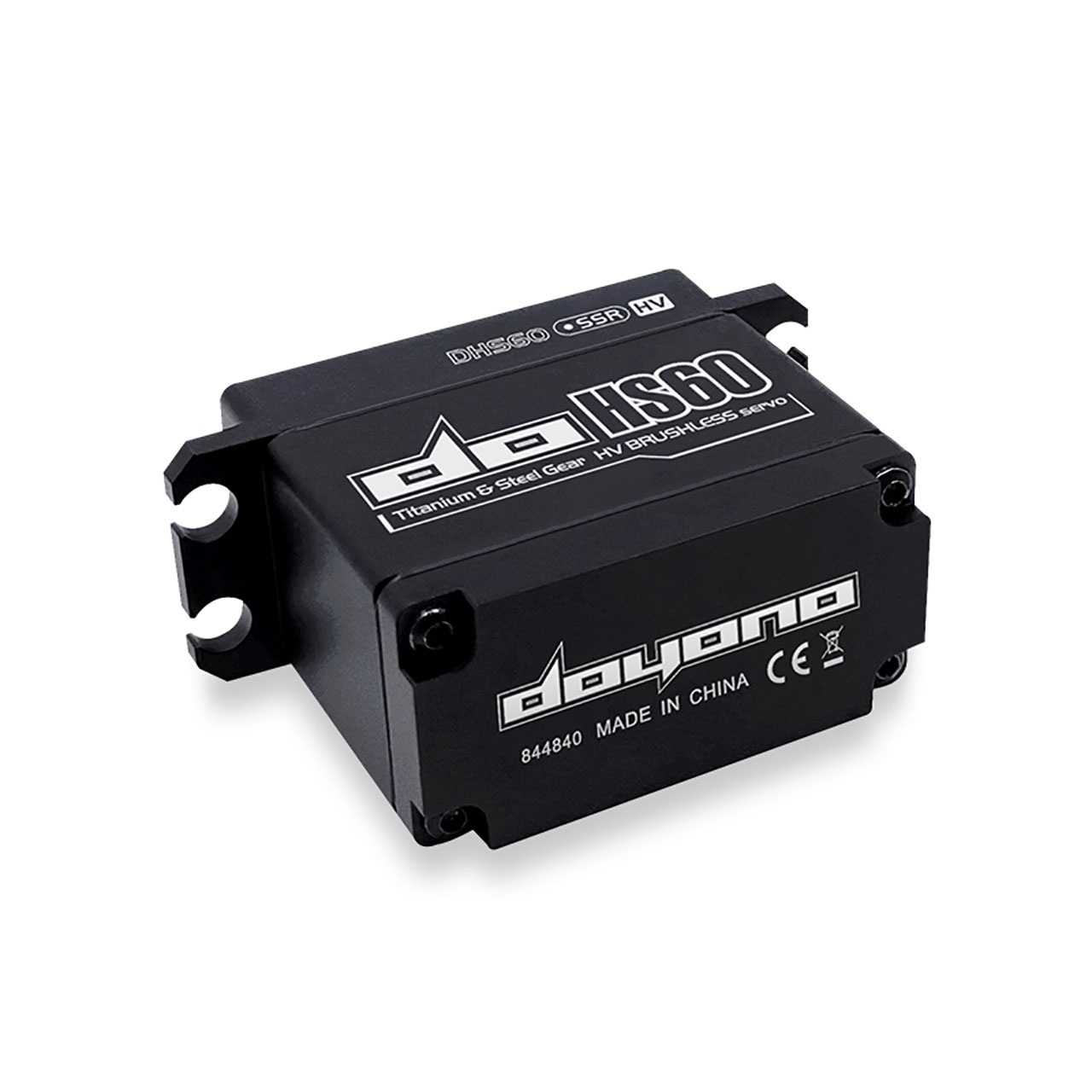

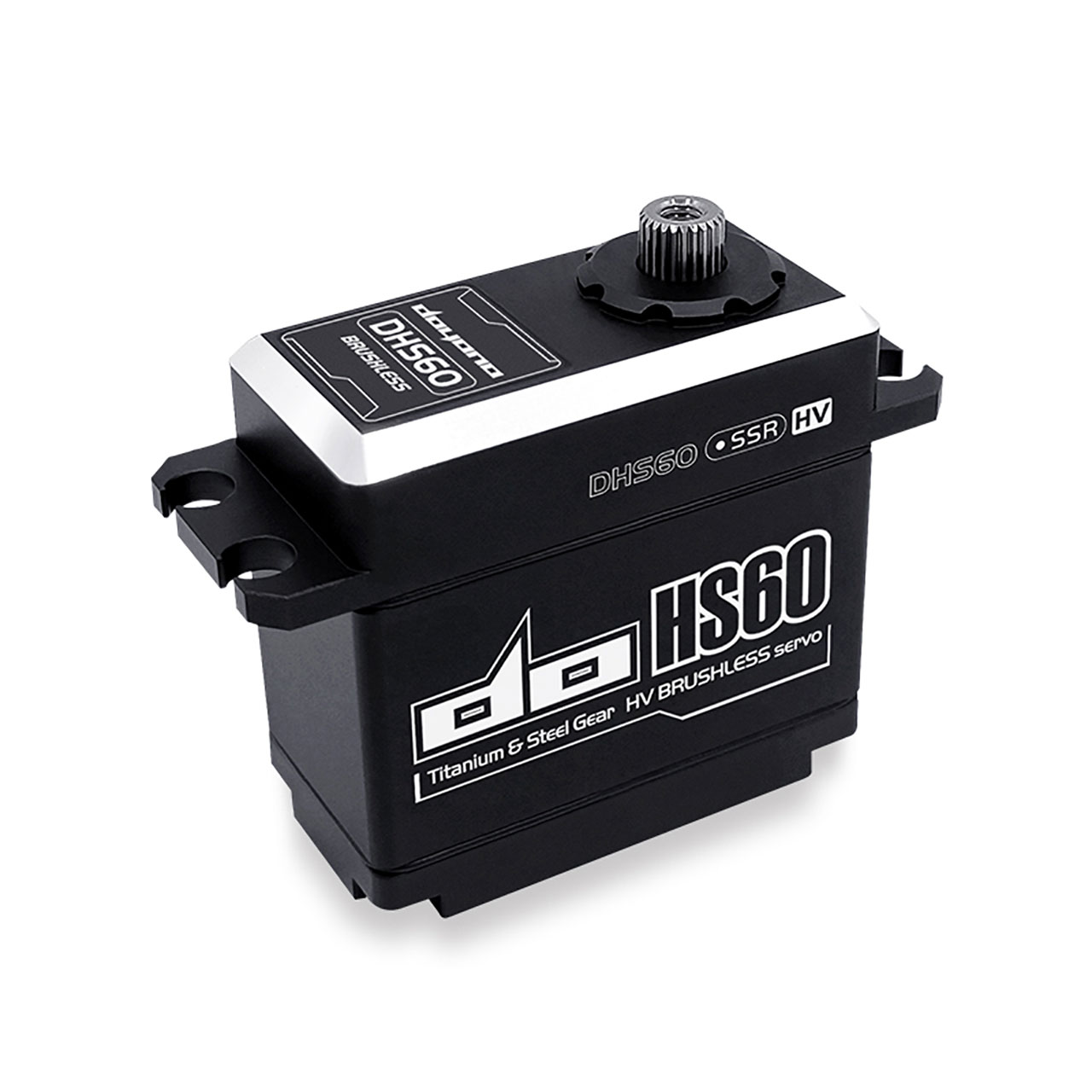

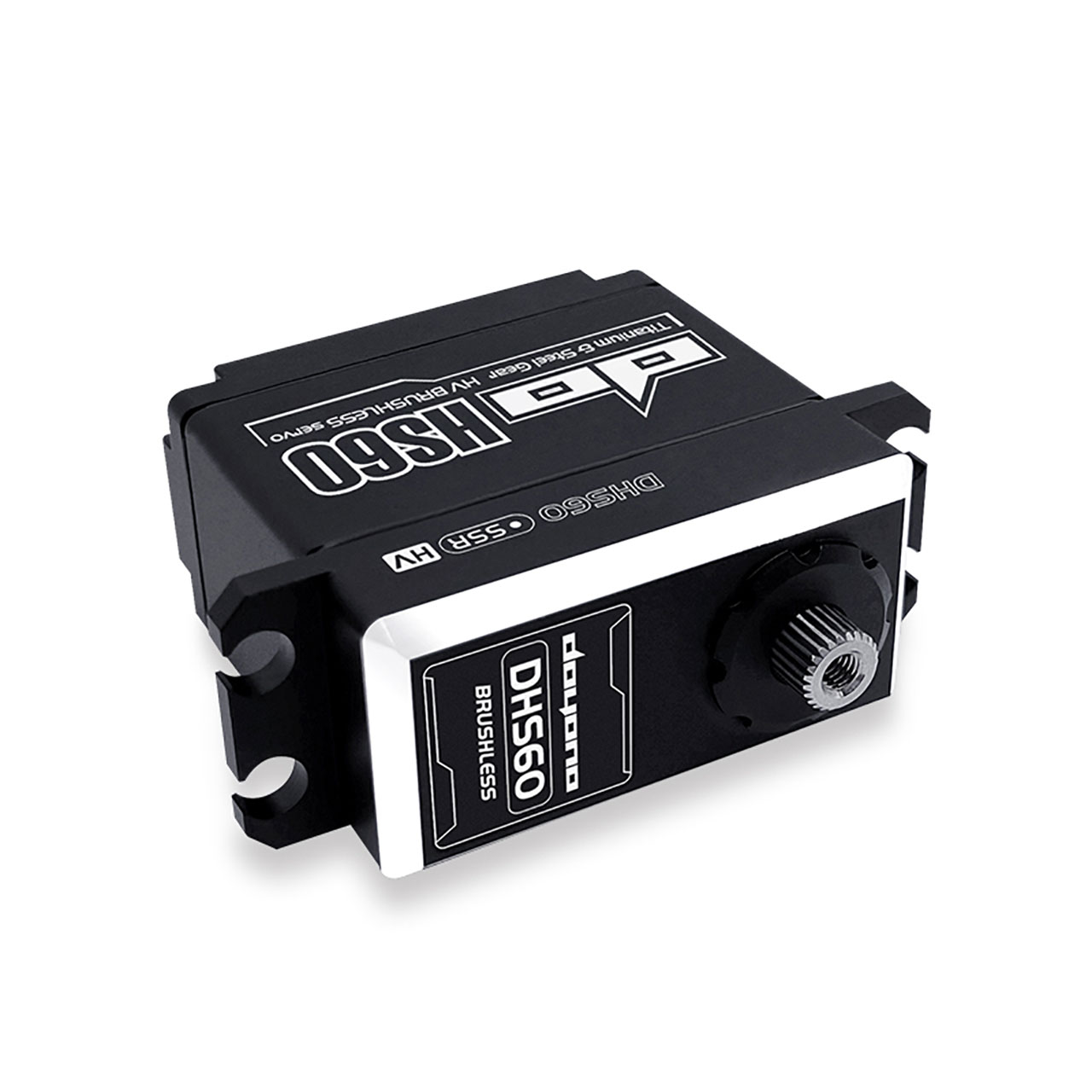

Brushless Servo HV CNC aluminium case 60.0kg/0.068sec @8.4V
High-voltage brushless servo with 60.0 kgcm torque at 8.4 V
- Item number
- DHS60
- EAN
- 6959009006015
€68.90incl. VAT, plus shipping
RRP €68.90
Description
The Doyono high-voltage brushless servo delivers up to 60 kgcm of torque. It has titanium and steel gears and an aluminium housing.
Highlights
- High-voltage servo
- Titanium and steel gears
- Lightweight aluminium housing
- Operating voltage: 6.0–8.4 V
- 2 µs dead band, 1520 µs neutral point
- 180 mm connection wire length
Specifications
| Speed | 0.096 s (6.0 V) · 0.068 s (8.4 V) |
|---|---|
| Torque | 46.0 kgcm (6.0 V) · 60.0 kgcm (8.4 V) |
| Motor | Brushless |
| Gears | Titanium / Steel |
| Bearings | yes, dual |
| Max. Travel | ~100° (at 800: 2200 µs) |
| Quiescent Current | 60 mA @ 6.0 V |
| Rated Current | 0.2 A @ 6.0 V |
|---|---|
| Stall Current | 3.6 A @ 6.0 V |
| Dimensions | 40.7 × 20.5 × 38.9 mm |
| Weight | 84.0 g |
| Spline | 25T |
| Application | 1/8 On-Road and Off-Road |
Safety & manufacturer
Manufacturer
Doyono
Item number: DHS60
EAN: 6959009006015
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
