Robitronic Aluminium Servo Arm 24 T (light) Black
- Part No: R17024
- Retail: €11.90
- EAN: 4046032053115
- Notice: Servoarm, Servohebel

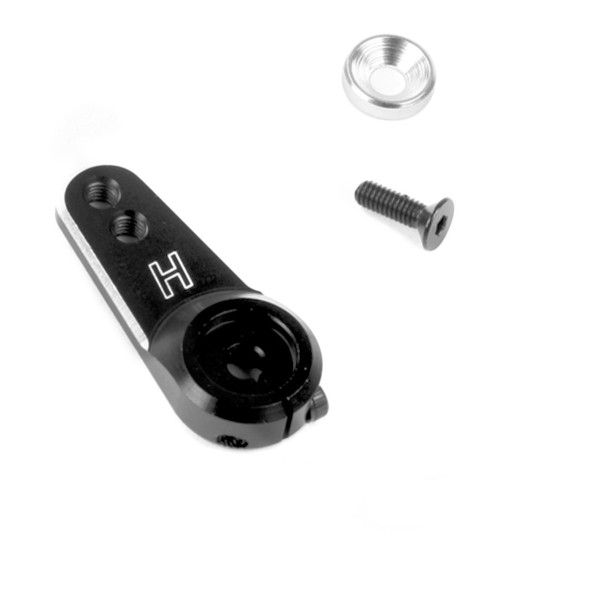

The CNC-machined aluminium servo arm is attached to the servo using the mounting screw from above and a lateral hex socket screw. The side screw clamps the servo arm onto the output shaft. The connection is 100% free of play, provides more direct linkage and reduces strain on the gears. The number of teeth is laser-engraved as a number or abbreviation, so the type can still be identified later.
The aluminium servo arm is considerably stiffer than a plastic arm. This makes commands more direct and precise; it is also more robust than the plastic servo arms usually fitted as standard.
Suitable for servos with 24 teeth on the gear spline/output shaft, e.g. Hitec.
Highlights
- Servo arm sits flush against the underside
Specifications
| Overall Servo Arm Length | 30 mm |
| Arm Thickness | 3 mm |
| Overall Height | 6 mm |
| Insertion Depth for Servo Gear | 3 mm |
| Mounting Holes | M3 incl. thread (2 pcs) |
| Mounting Hole Spacing from Centre | 16 mm (hole 1) / 20 mm (hole 2) |
In the box
- 1× Anodised single-arm servo arm, 24 teeth
- 1× Hex socket screw
- 1× Aluminium sleeve
- 1× M3 servo mounting screw
