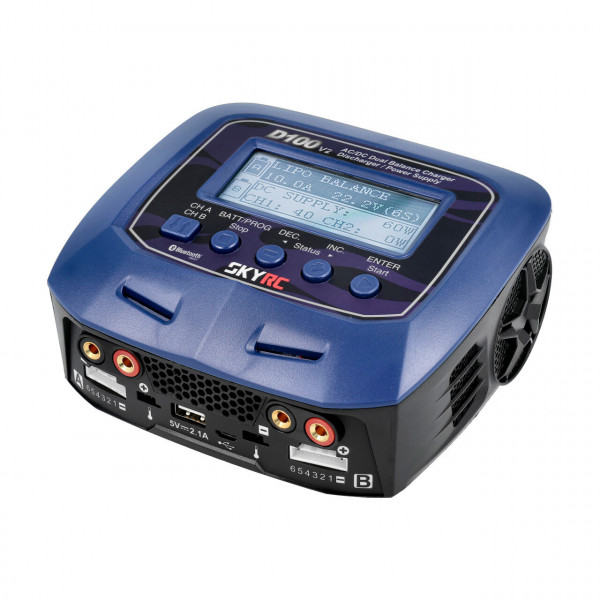

SkyRC D100 V2 AC/DC LiPo 1-6s 10A 100W Charger

SkyRC Charger D100 V2

The SkyRC D100 v2 is a 2-channel charger with 2 independent outputs for charging various cell technologies (LiPo / LiHV / LiFe / Lilon / NiMH / NiCd / PB). The additional use as a power supply with a maximum output power of 100W opens new possibilities for the model builder. The unprecedented voice output makes the operation much easier. The new "Scan to Go" function has also been integrated. The revolutionary "Scan to Go" function provides a solution that allows each battery to have its own QR code. This QR code contains all relevant parameters for charging or discharging this battery. Once you have generated the code, you can stick it on the battery.

Features:

2-channel charger: The SKYRC D100 allows you to connect and charge two different types of batteries at the same time.

Automatic power distribution: In AC mode the max. Energy (100W) is distributed automatically and optimally to the two outputs. e.g. Channel A = 70W and Channel B = 30W

Data storage: The data of a maximum ten batteries per output can be stored and recalled if necessary

Terminal Voltage Control (TVC): The user can adjust the battery voltage manually, so the maximum permissible end voltage can be set and reached according to the set of rules.

Built-in lithium battery Balancer: The charger uses a built-in balancer that monitors and balances the individual cell voltage. It is therefore not necessary to connect an external balancer.

Voice Guide: Purposes to make the charger more user-friendly and customizable. A speaker supported English and Chinese separately have been included in the left side of the charger that can reduce the times for

DC Power Supply: The ability of supplying 100W/13.8V DC power expands its usage scope, which is really an amazing partner for hobbyists to power the DC equipments.

LiHV mode: The additional LiHV mode allows the charging of special LiHV batteries with a charging voltage of 4.35V.

Bluetooth: The Bluetooth 4.0 connectivity allows the user to remote control and monitor the D100 v2 comfortably through an app on a portable device such as smartphone, iPad, or iPhone. The iOS app can be downloaded from iTunes Store, the Android app from Google Play Store. Operation of the app is self-explanatory and the same on iOS and on Android.

Scan-to-go: The revolutionary "Scan to Go" function provides a solution to assign each battery its own QR code. This QR code contains all relevant parameters for charging or discharging this battery. Once you have generated the code, you can stick it to the battery, and scanning the code automatically starts the stored program which has been assigned to the code.

Charge Master: The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from "Charge Master".

Technical specifications:

• Input voltage: AC 100-240V / DC 11-18V
• Charging power DC: 2x100W, AC: 100W (distribution adjustable)
• Discharge power: 2x10W
• Charge current: 0.1-10A
• Balancing current: max. 300mA / cell
• Discharge current: 0.1A -2A
• Power supply output: 13.8V / 10-100W
• Battery Types/Cells:
  • LiPo, LiFe, LiIon, LiHV: 1-6S
  • NiMH, NiCd: 1-15S
  • PB: 2-20V
• Battery Capacity Range: 100-50000mAh
• USB output: 5V / 2.1A
• Display Background: white (LCD)
• Housing material: plastic
• Weight: 670g
• Dimensions: 153x140x67m

Delivery:

1x SKYRC D100v2 Charger
2x XH balancer adapter
2x charging cable
2x charging cable with XT60 connectors
1x power cord
